HHP ANCHORS

AC-14

30 to 21750 kgs

 TECHNICAL DETAILS

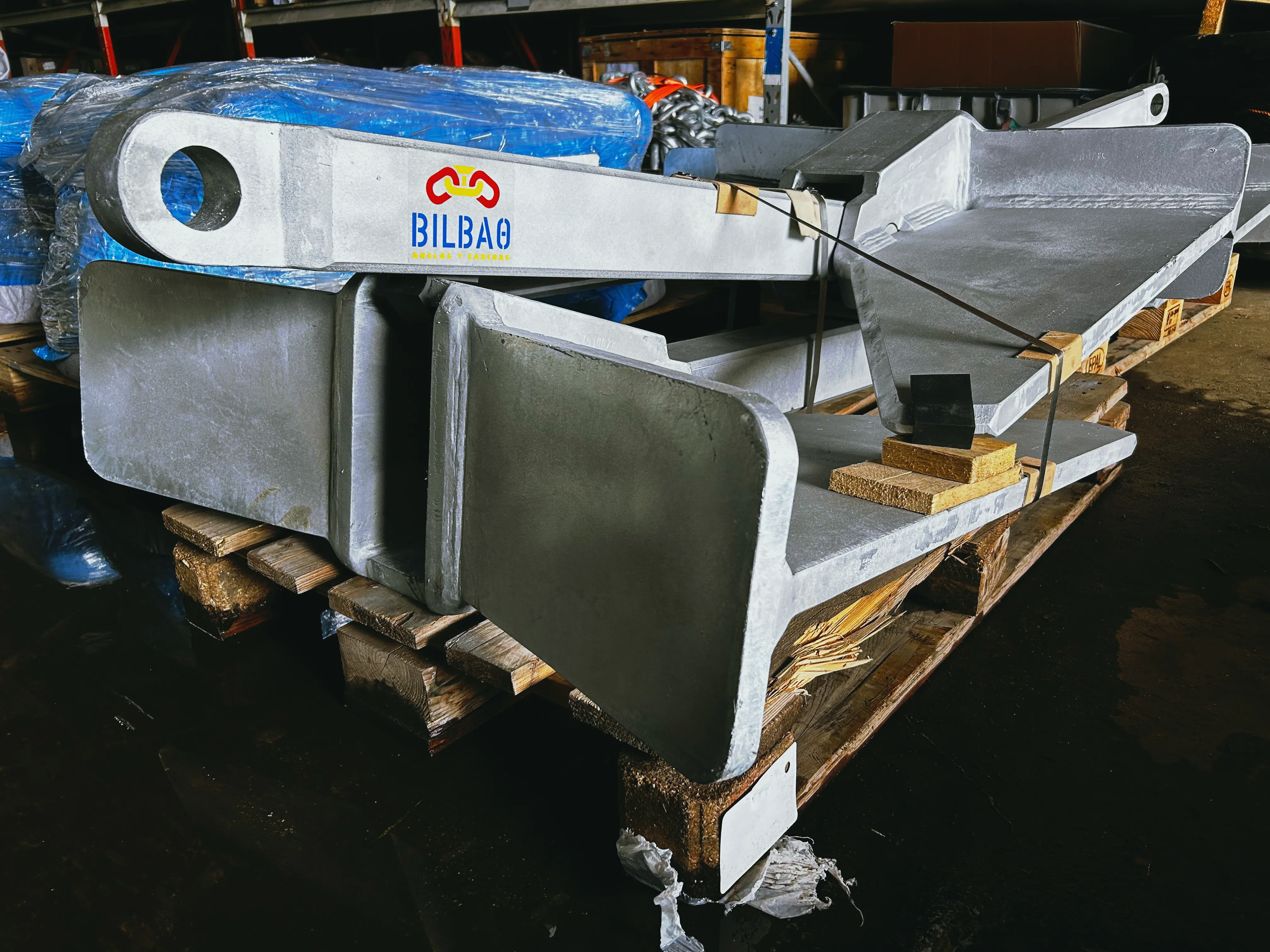

TW HHP

20 to 30000 kgs

 TECHNICAL DETAILS

D'HONE

500 to 5175 kgs

 TECHNICAL DETAILS

N HHP

20 to 17250 kgs

 TECHNICAL DETAILS

We are a Specialized Maker of HHP Anchors

At Bilbao Anclas y Cadenas reliability is at the core of our High Holding Power manufacturing process.

We follow strict Quality Assurance policies in order to guarantee that each of our HHP anchors is provided an independent certificate.

This applies to all our manufacturing locations.

THE INDUSTRY STANDARD

Certified by LR, ABS, DNV and other independent parties.

 READ MORE

DELIVERY ON TIME

To any worldwide location

 GET A QUOTE

 HHP ANCHOR REQUIREMENTS

Guaranteed Holding Power

Every HHP anchor that we produce is required to grant at least the same holding power as a conventional stockless anchor of 25% less weight.
High Holding Power anchors are smaller and lighter than conventional ship anchors, they are the most efficient and cost-effective option.

Triple Soil Testing

In order for an HHP anchor to comply with industry standards it needs to obtain the guaranteed holding power results in 3 different types of marine soils: very soft clay, medium clay, sand and hard clay. The anchors need to be tested with 3 different weights as well.

Materials: GS200 Steel

High Holding Power anchors from Bilbao are crafted with high quality steel meant for ensuring a high durability. Our preferred material is GS200 (1.0449) cast steel for it's extremely high quality. You can learn more about the technical details of this steel on the technical drawings.

Certification

Our HHP anchors have been certified with ABS, LR, BV, DNV and several other certificates. Every High Holding Power anchor that we produce is a good of the highest quality available. We can also supply modified anchors with certification if necessary.

Finishing touch

While most HHP anchors are used in regular ships, some types, such as the N HHP anchor, are mostly used in yachts or super yachts. Therefore, we can provide any finishing touch to the anchors on request, such as white paint, hot dip galvanized steel, stainless steel, or other specifications.

Shackle or Swivel end

While most HHP anchors use a crown shackle, in special situations it is recommended to use a swivel end. Here at Bilbao Anclas y Cadenas we can supply both the traditional anchor with a crown shackle end, as well as the one with a swivel.
