SHIP SWIVELS

SWIVEL SHACKLE TYPE A

 Read More

SWIVEL SHACKLE TYPE B

 READ MORE

SWIVEL FORERUNNER

 READ MORE

SHORT SWIVEL FORERUNNER

 READ MORE

 WHERE TO FIND US

Ship Swivels in Spain

NEAR THE MAIN PORTS

When you buy from Bilbao you avoid relying on international transportation, which puts you in risk of delays and extra expenses. Get you ship serviced only with swivels in Spain, sourced from right next to your location for your convenience.

At Bilbao we supply ships in Spain at the North on the ports of Ferrol, Gijon, Santander and evidently Bilbao. Eastern ports are also covered in Barcelona, Tarragona, Cartagena and Alicante (near Valencia) among others. Similarly, in the South at Almeria, Motril or Malaga, including Cadiz.

GET A QUOTE

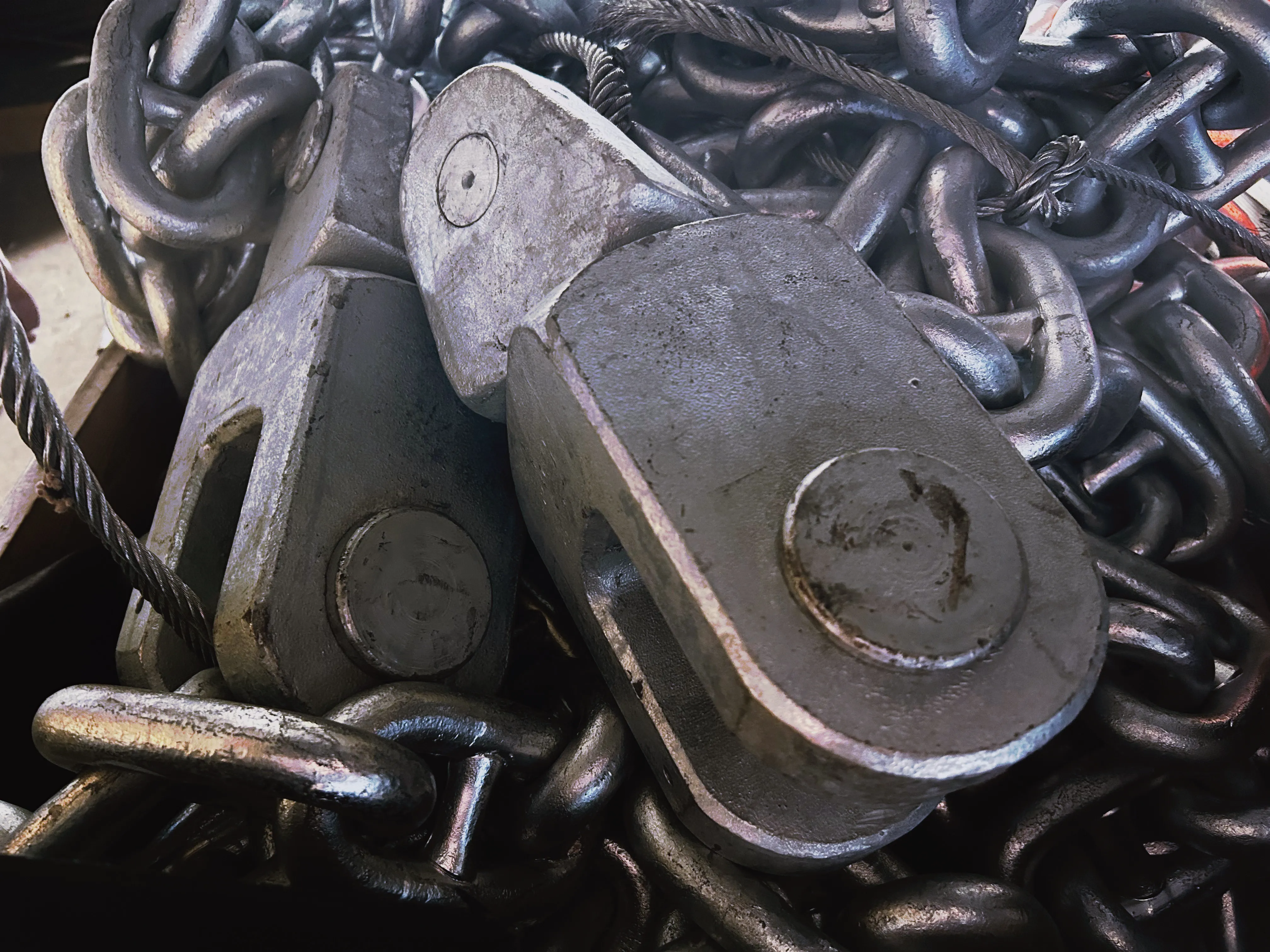

Swivels in Spain

Swivels Tariff Number or HS Code: 7315.9000

Ship Swivels, as well as other components of the Anchor Chain such as shackles, have their own unique HS Code or Tariff Number: 7315.9000. Even if they are components of the chain line, when exporting or importing them, they need to be declared correctly with their own Tariff Number. Rules and enforcement are different across countries, if you have a doubt instead of taking the risk, simply ask Bilbao.

YOU MAY REQUEST US

Certificates by LR, BV, DNV and other independent parties.

 SEND YOUR INQUIRY

MORE ABOUT TARIFFS

What you need to know before importing our Ship Swivels:

 SEND A MESSAGE

 TABLE - WEIGHT OF SHACKLES FOR THE ANCHOR CHAIN

Chain Dia
mm 		Standard Swivel
kg 		A Swivel
kg 		Swivel Forerunner
kg
14 1.3 9 2.52
16 1.7 - 3.57
17.5 2.1 14 4.73
19 2.5 15 5.75
20.5 3.1 17 7.18
22 3.5 20 8.21
24 5 22 11.38
26 6 32 14.05
28 7.5 43 17.9
30 9 72 21.1
32 11 98 25.7
34 13.5 102 31.3
36 16 112 36.9
38 19 118 42.7
40 23 122 50.7
42 27 128 59.8
44 32 135 70.6
46 37 145 81.5
48 44 160 95
50 57 212 115
52 57 289 124
54 67 295 141
56 67 300 148
58 80 310 168
60 95 320 191
62 95 330 202
64 112 340 231
66 130 350 261
68 130 458 273
70 152 472 307
73 172 502 348
76 194 522 392
78 194 652 409
81 220 815 458
84 242 912 508
87 270 1007 564
90 300 1152 623
92 325 1300 669
95 350 1452 733
97 350 1552 754
100 385 1610 827
102 420 1620 891
107 495 1627 1042
111 535 1812 1150
114 570 1912 1239
117 610 2022 1332
122 650 2336 1465
127 720 2636 1632
132 760 2960 1790
137 900 3309 2030
142 1100 3685 2380
147 1200 4088 2680
152 1400 4520 2990
157 1550 4980 3315
162 1700 5470 3635
