ABOUT D ANCHOR SHACKLES

The Anchor Shackle type D, also commonly known as the D Anchor Shackle, or D End Shackle, is a connector between the crown shackle attached to the anchor, and the end link of the swivel forerunner or a swivel shackle.

It can also connect the main chain cable to a wire rope or a synthetic rope.

The Anchor D Shackle is one of the most commonly used components of an anchor chain.

It can replace a Pear Shackle, although that would usually require an end link or a swivel forerunner connection, due to the diameter difference.

THE INDUSTRY STANDARD

Is From Bilbao's Anchor Shackles for ships

SIZE MEASUREMENTS

All the standard dimensions

TECHNICAL DETAILS - D SHACKLE

MATERIAL QUALITY CONTROL

Anchor Shackles, anb more specifically Anchor D Shackles can be manufactured in Grade 2 and Grade 3 depending on the type of anchor that it is attached to.

For connecting HHP High Holding Power anchors only Grade 3 Anchor D Shackles should be used, as specified by DNV Rules.

This is mainly due to the superior mechanical properties of the material used, that should be similar to these, and we can compare the deviation from the kenter shackle used on the same anchor chain cable:

PROPERTY	U3 ANCHOR D SHACKLE	U3 KENTER SHACKLE
YIELD POINT (Mpa)	591	610
TENSILE STRENGTH (Mpa)	727	727
ELONGATION (%)	22	21
AREA REDUCTION (%)	68	67

MORE STANDARDS

qa@bilbaochain.com

The standard Anchor D Shackle comes in a wide variety of sizes, since it's use is so widely adopted in the maritime industry. Starting at 12.5 to 20.5 mm on the smaller chain, typically for yachts. Followed by 22 to 95 mm dia chain for commercial ships, and from 100 up to 177 mm for the largest ships.

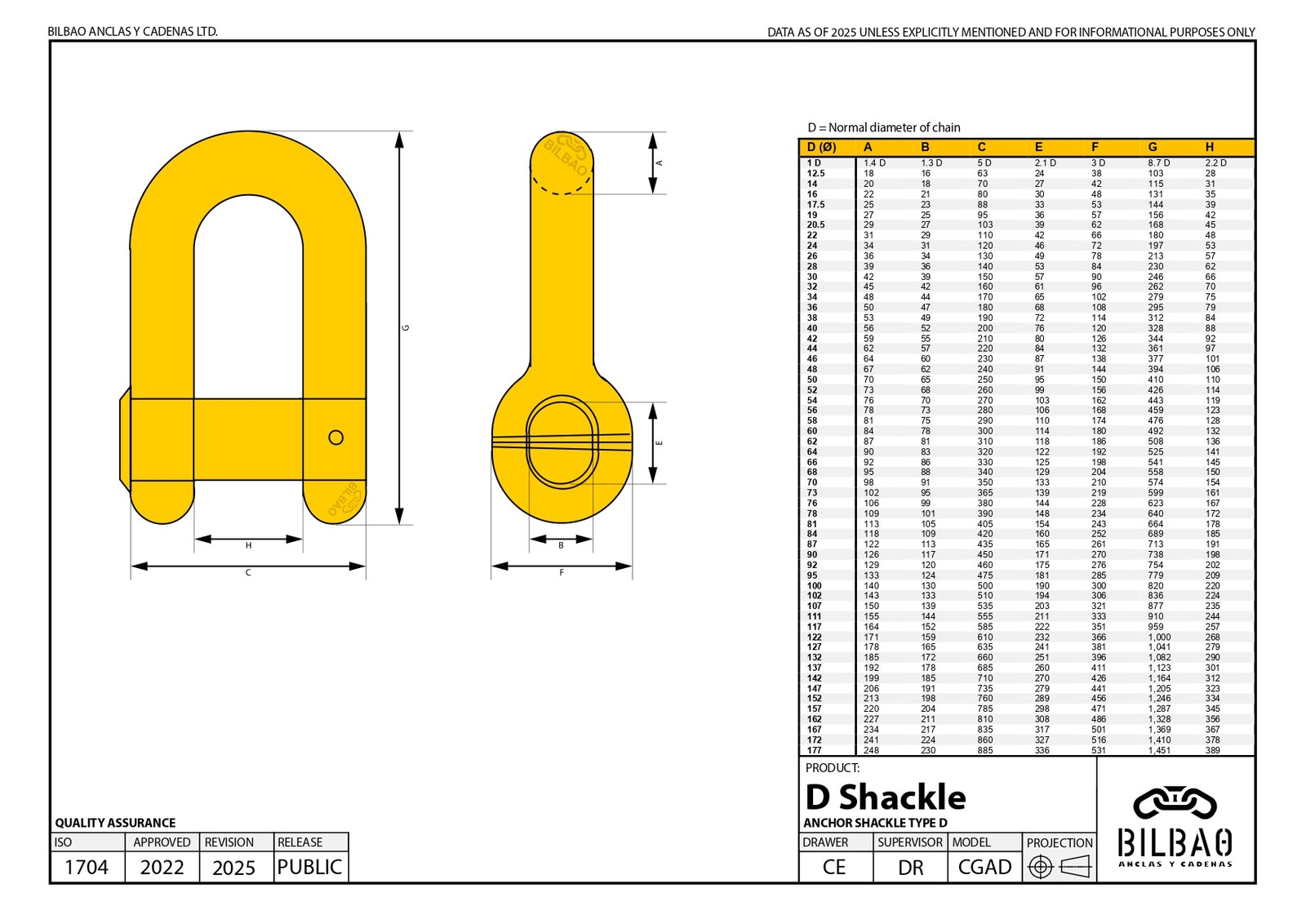

D SHACKLE MEASUREMENTS

DELIVERY ON TIME

To any worldwide location

GET A QUOTE

D (Ø)	A	B	C	E	F	G	H
12.5	18	16	63	24	38	103	28
14	20	18	70	27	42	115	31
16	22	21	80	30	48	131	35
17.5	25	23	88	33	53	144	39
19	27	25	95	36	57	156	42
20.5	29	27	103	39	62	168	45
22	31	29	110	42	66	180	48
24	34	31	120	46	72	197	53
26	36	34	130	49	78	213	57
28	39	36	140	53	84	230	62
30	42	39	150	57	90	246	66
32	45	42	160	61	96	262	70
34	48	44	170	65	102	279	75
36	50	47	180	68	108	295	79
38	53	49	190	72	114	312	84
40	56	52	200	76	120	328	88
42	59	55	210	80	126	344	92
44	62	57	220	84	132	361	97
46	64	60	230	87	138	377	101
48	67	62	240	91	144	394	106
50	70	65	250	95	150	410	110
52	73	68	260	99	156	426	114
54	76	70	270	103	162	443	119
56	78	73	280	106	168	459	123
58	81	75	290	110	174	476	128
60	84	78	300	114	180	492	132
62	87	81	310	118	186	508	136
64	90	83	320	122	192	525	141
66	92	86	330	125	198	541	145
68	95	88	340	129	204	558	150
70	98	91	350	133	210	574	154
73	102	95	365	139	219	599	161
76	106	99	380	144	228	623	167
78	109	101	390	148	234	640	172
81	113	105	405	154	243	664	178
84	118	109	420	160	252	689	185
87	122	113	435	165	261	713	191
90	126	117	450	171	270	738	198
92	129	120	460	175	276	754	202
95	133	124	475	181	285	779	209
100	140	130	500	190	300	820	220
102	143	133	510	194	306	836	224
107	150	139	535	203	321	877	235
111	155	144	555	211	333	910	244
117	164	152	585	222	351	959	257
122	171	159	610	232	366	1000	268
127	178	165	635	241	381	1041	279
132	185	172	660	251	396	1082	290
137	192	178	685	260	411	1123	301
142	199	185	710	270	426	1164	312
147	206	191	735	279	441	1205	323
152	213	198	760	289	456	1246	334
157	220	204	785	298	471	1287	345
162	227	211	810	308	486	1328	356
167	234	217	835	317	501	1369	367
172	241	224	860	327	516	1410	378
177	248	230	885	336	531	1451	389
